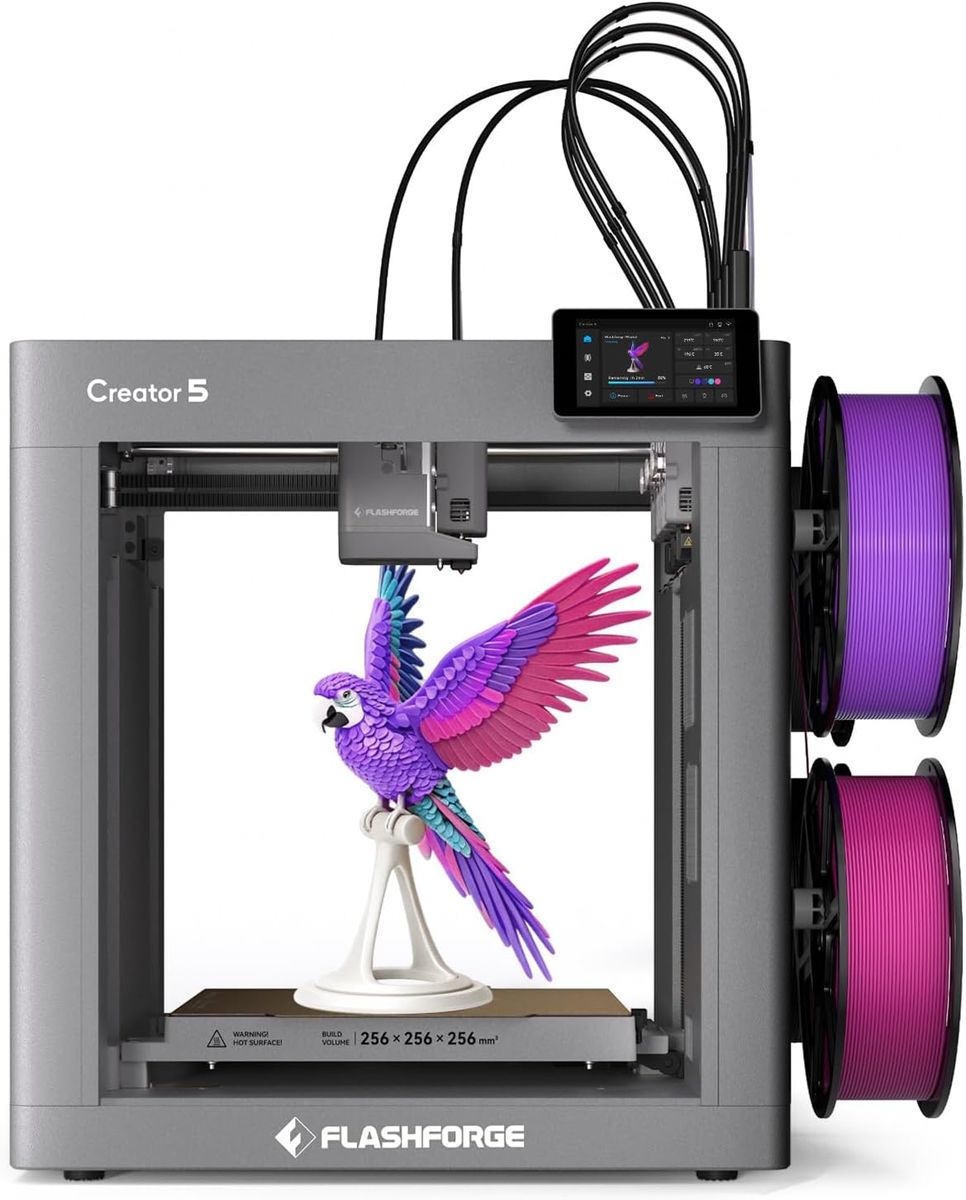

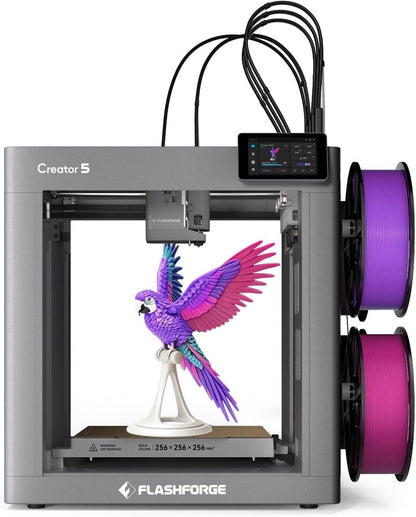

Flashforge Creator 5 3D Printer

4-Toolhead Multi-Colour & Multi-Material 3D Printing

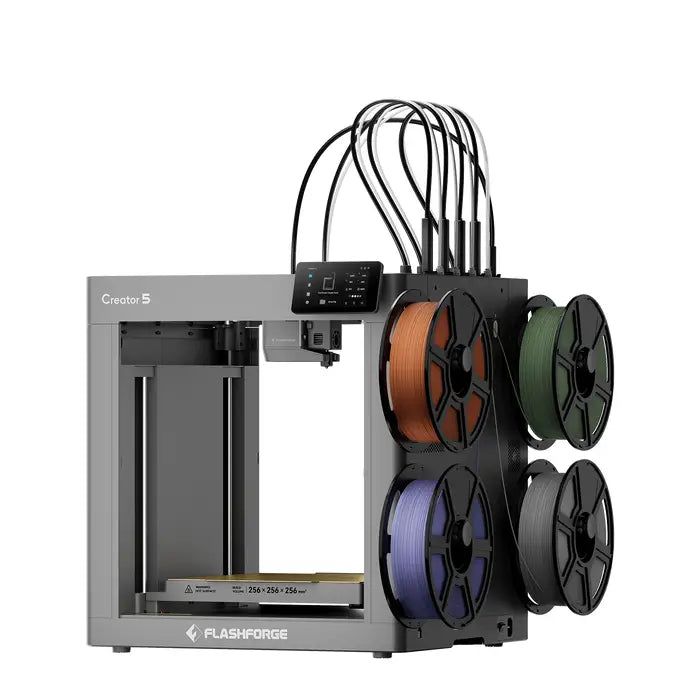

Take multi-colour and multi-material 3D printing to the next level with the Flashforge Creator 5 — a high-speed 3D printer engineered around four independent toolheads, intelligent automation and an efficient tool-changing system.

With a generous 256 × 256 × 256 mm build volume, print speeds of up to 300 mm/s, travel speeds of up to 600 mm/s and four independently controlled toolheads, the Creator 5 delivers a powerful combination of productivity, flexibility and print quality.

Unlike conventional multi-colour printers that force multiple materials through a single nozzle, the Creator 5 keeps different filaments loaded in separate toolheads. The printer automatically selects and changes between toolheads as required, dramatically reducing material waste and colour contamination while allowing different materials to be combined within a single print. (Flashforge)

Four Independent Toolheads — True Multi-Material Printing

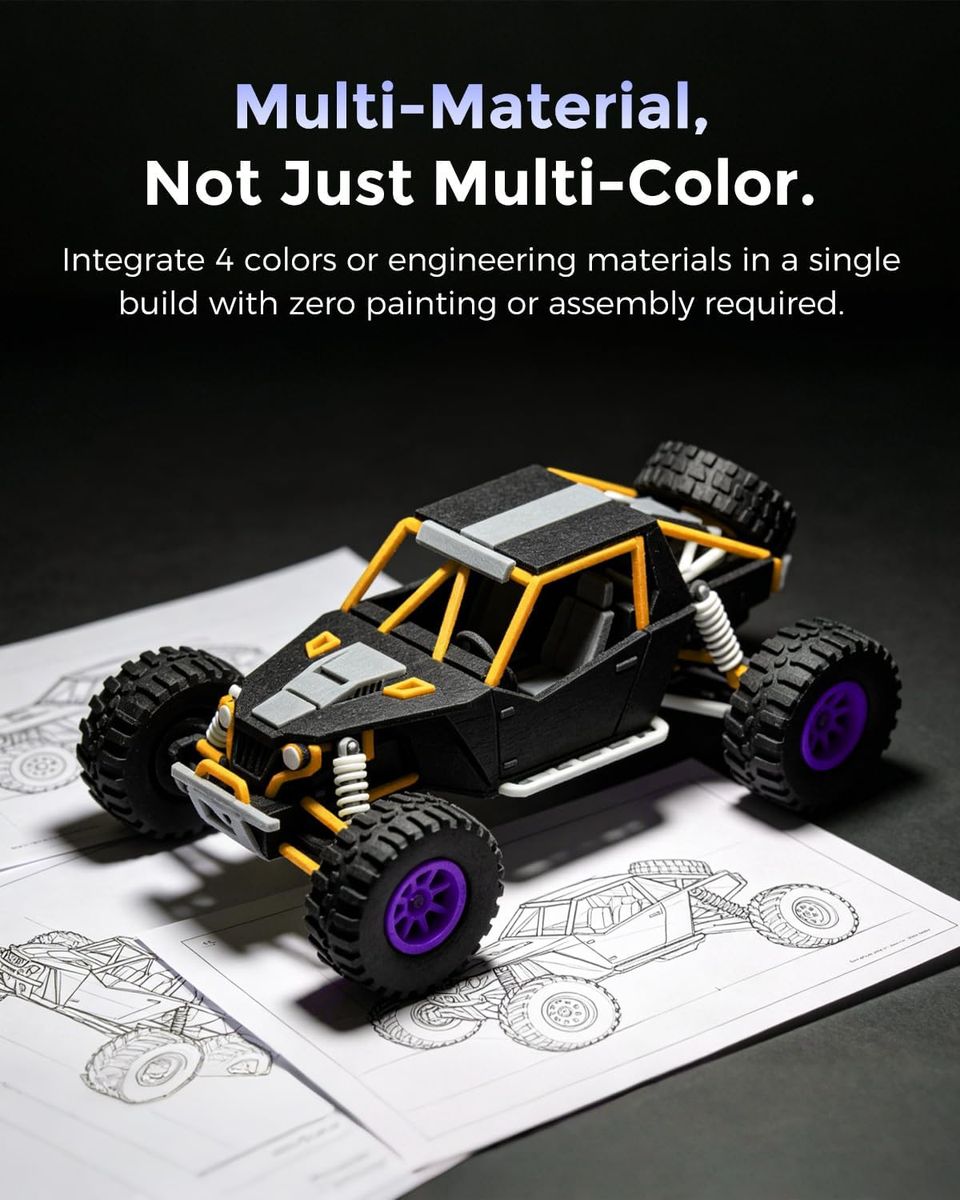

The Creator 5 features four independently controlled toolheads, giving you the freedom to dedicate each toolhead to a different colour, material or support filament.

This makes it possible to create:



• Multi-colour models
• Multi-material components
• Models with dedicated support materials
• Functional parts combining different material properties
• Complex prints requiring soluble or specialised supports
• Production parts with different materials in a single print



Because each toolhead remains loaded and ready, switching between materials is significantly more efficient than conventional single-nozzle multi-colour systems. (Flashforge)

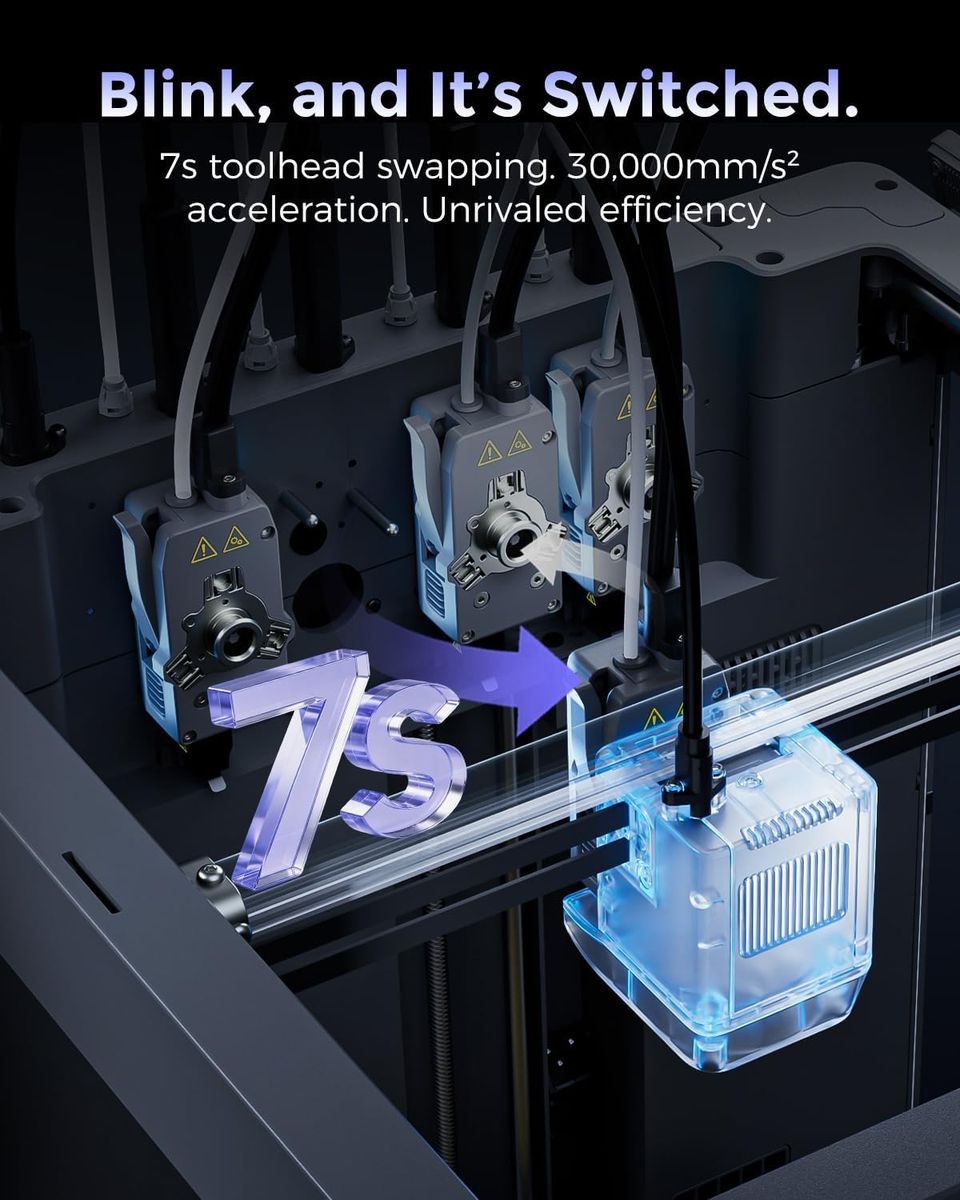

FlashSwap™ Tool-Changing Technology

Flashforge's FlashSwap™ system is at the heart of the Creator 5.

Each toolhead is independently parked when not in use, allowing the printer to automatically select the appropriate nozzle during the print. This approach enables fast material changes while greatly reducing the purging and waste normally associated with multi-colour printing.

Flashforge claims multi-colour printing can be up to 500% faster than conventional approaches, while the system is designed for near-zero purge waste during material changes. (Flashforge)

High-Speed CoreXY Performance

The Creator 5 combines its multi-toolhead system with a high-speed motion platform capable of:



• 300 mm/s maximum print speed
• 600 mm/s maximum travel speed
• 30,000 mm/s² maximum acceleration
• 32 mm³/s maximum flow rate



This makes the Creator 5 suitable not only for creative multi-colour models, but also for users who need high productivity and rapid turnaround times. (Flashforge ASIA)

Large 256 × 256 × 256 mm Build Volume

With a 256 × 256 × 256 mm build volume, the Creator 5 provides plenty of space for functional components, prototypes, models, artistic pieces and production parts.

All four toolheads have access to the complete build area, allowing different materials or colours to be used throughout the same model. (Flashforge)

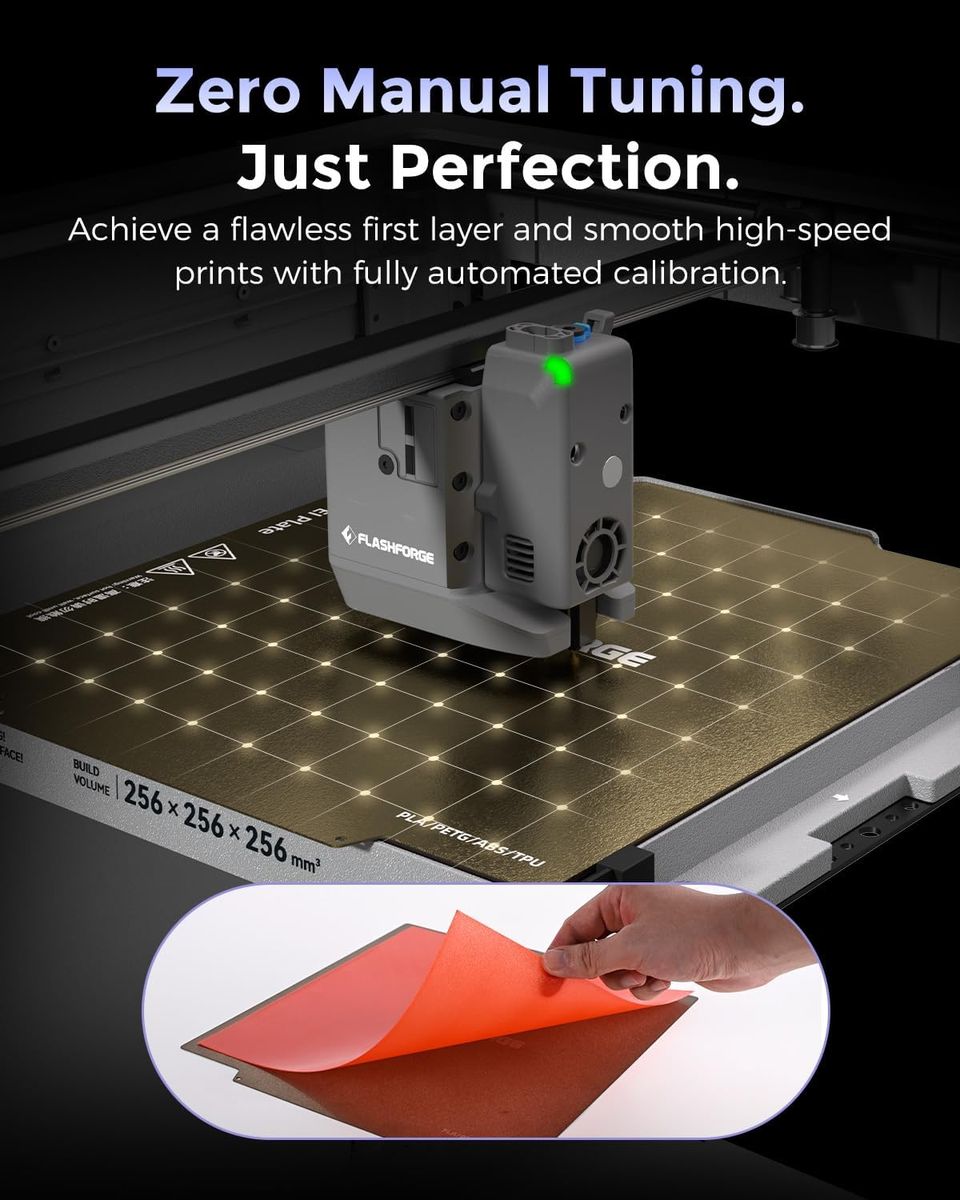

Intelligent Automatic Calibration

The Creator 5 is designed to minimise setup and calibration work.

Automatic systems include:



• Automatic bed levelling
• Dynamic flow calibration
• Automatic toolhead offset calibration
• Vibration compensation
• Extruder temperature calibration
• Filament run-out detection
• Power outage recovery



These features help maintain consistent first layers, accurate toolhead positioning and reliable print performance. (Flashforge Wiki)

High-Temperature Printing Capability

With a maximum extruder temperature of 320°C and a heated bed capable of reaching 120°C, the Creator 5 supports a broad range of 3D printing materials.

Compatible materials include:

PLA, PETG, TPU, PLA-CF, PETG-CF, PET, SILK, PVA, BVOH and selected engineering and composite materials.

For more demanding materials such as ABS, ASA, nylon and high-performance carbon-fibre materials, the Creator 5 can support a selection of these materials when appropriate printing conditions and configurations are used. (Flashforge)

Important distinction

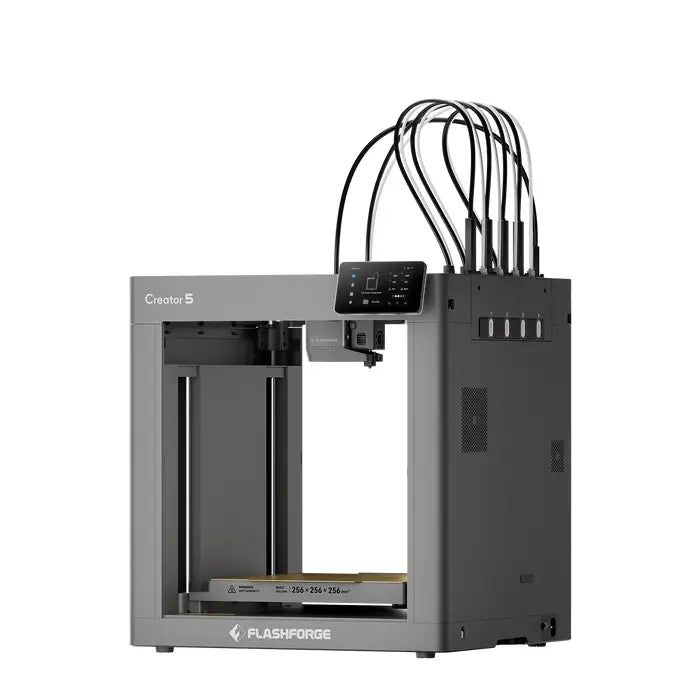

The Creator 5 uses an open-frame design and does not feature the active heated chamber and advanced enclosed filtration system found on the Creator 5 Pro. The standard Creator 5 is therefore particularly well suited to PLA, PETG, TPU and similar materials, while the Creator 5 Pro is the better choice for demanding engineering materials requiring a controlled heated chamber. (Flashforge)

PEI Flexible Build Plate

The Creator 5 features a textured PEI flexible steel build plate, providing reliable adhesion during printing while allowing finished parts to be removed easily by flexing the plate.

The heated bed reaches up to 120°C, helping improve adhesion and reduce warping with suitable materials. (Flashforge Wiki)

Professional Monitoring & Connectivity

The Creator 5 is designed for modern connected workflows with:



• Built-in Full HD camera
• Remote print monitoring
• USB connectivity
• 2.4 GHz and 5 GHz Wi-Fi
• Multi-printer management
• 4-inch 800 × 480 full-colour touchscreen
• Orca-Flashforge compatibility
• OrcaSlicer compatibility



This makes it particularly useful for workshops, offices and print farms where multiple machines may need to be monitored and managed. (Flashforge)

Key Features



• 4 independent toolheads
• True multi-colour and multi-material printing
• FlashSwap™ tool-changing technology
• Up to 300 mm/s print speed
• Up to 600 mm/s travel speed
• Up to 30,000 mm/s² acceleration
• 256 × 256 × 256 mm build volume
• Maximum nozzle temperature of 320°C
• Maximum heated bed temperature of 120°C
• 32 mm³/s maximum flow rate
• Automatic bed levelling
• Automatic toolhead calibration
• Dynamic flow calibration
• PEI flexible steel build plate
• Filament run-out detection
• Power outage recovery
• Built-in Full HD camera
• Wi-Fi and USB connectivity
• Orca-Flashforge and OrcaSlicer support
• Open-frame construction



Technical Specifications

Specification	Flashforge Creator 5
Printing Technology	FDM
Toolheads	4 Independent Toolheads
Build Volume	256 × 256 × 256 mm
Maximum Print Speed	300 mm/s
Maximum Travel Speed	600 mm/s
Maximum Acceleration	30,000 mm/s²
Maximum Flow Rate	32 mm³/s
Maximum Extruder Temperature	320°C
Maximum Bed Temperature	120°C
Standard Nozzle	0.4 mm
Optional Nozzles	0.25 / 0.6 / 0.8 mm
Layer Thickness	0.1 – 0.4 mm
Build Plate	Textured PEI Flexible Steel
Bed Levelling	Automatic
Filament Diameter	1.75 mm
Connectivity	USB / Wi-Fi
Wi-Fi	2.4 GHz / 5 GHz
Camera	Full HD 1280 × 720 @ 30 fps
Slicing Software	Orca-Flashforge / OrcaSlicer
Construction	Open Frame
Printer Dimensions	520 × 443 × 710 mm*
Net Weight	Approx. 14 kg
Power	100–120V / 200–240V AC, 50/60Hz, 700W

*Dimensions include filament holders and guide tubes. (Flashforge Wiki)

Ideal For

The Flashforge Creator 5 is an excellent choice for:



Multi-colour 3D printing

Multi-material prototyping

Functional prototypes

Engineering components

Product development

Model making

Architectural models

Educational applications

Artistic and creative projects

Small-batch production

3D printing businesses and workshops

Print farms requiring efficient multi-material capability



Creator 5 — Built for More Than Just Multi-Colour

The Flashforge Creator 5 is more than a conventional multi-colour printer. Its four independent toolheads, high-speed CoreXY platform, automatic calibration systems and low-waste material switching make it a highly capable production-oriented desktop 3D printer.

For users looking for an efficient way to produce complex, colourful or multi-material parts without the excessive purge waste associated with traditional multi-colour systems, the Creator 5 offers a compelling combination of speed, flexibility and productivity.

Flashforge Creator 5 — four toolheads, high speed and virtually limitless creative possibilities.
