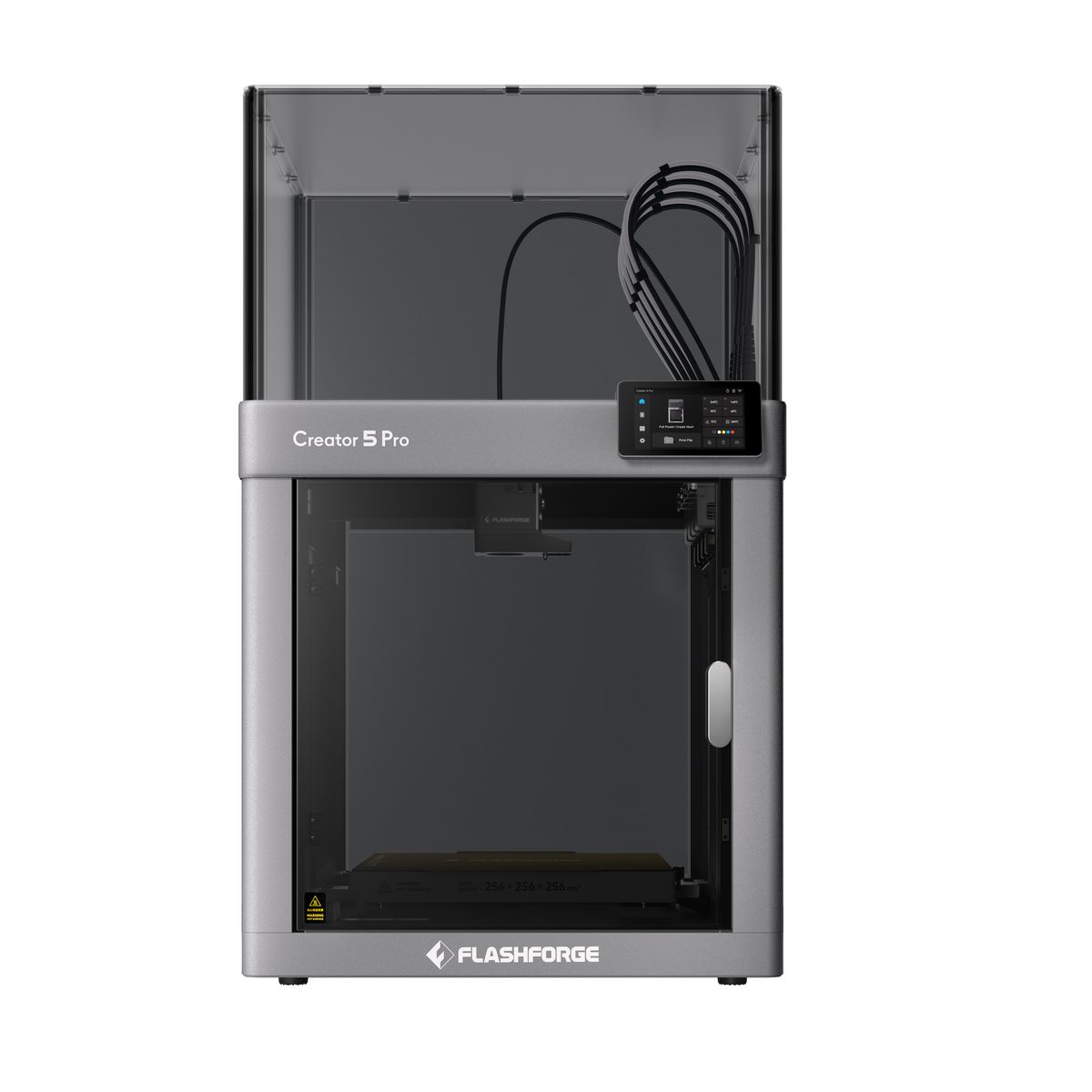

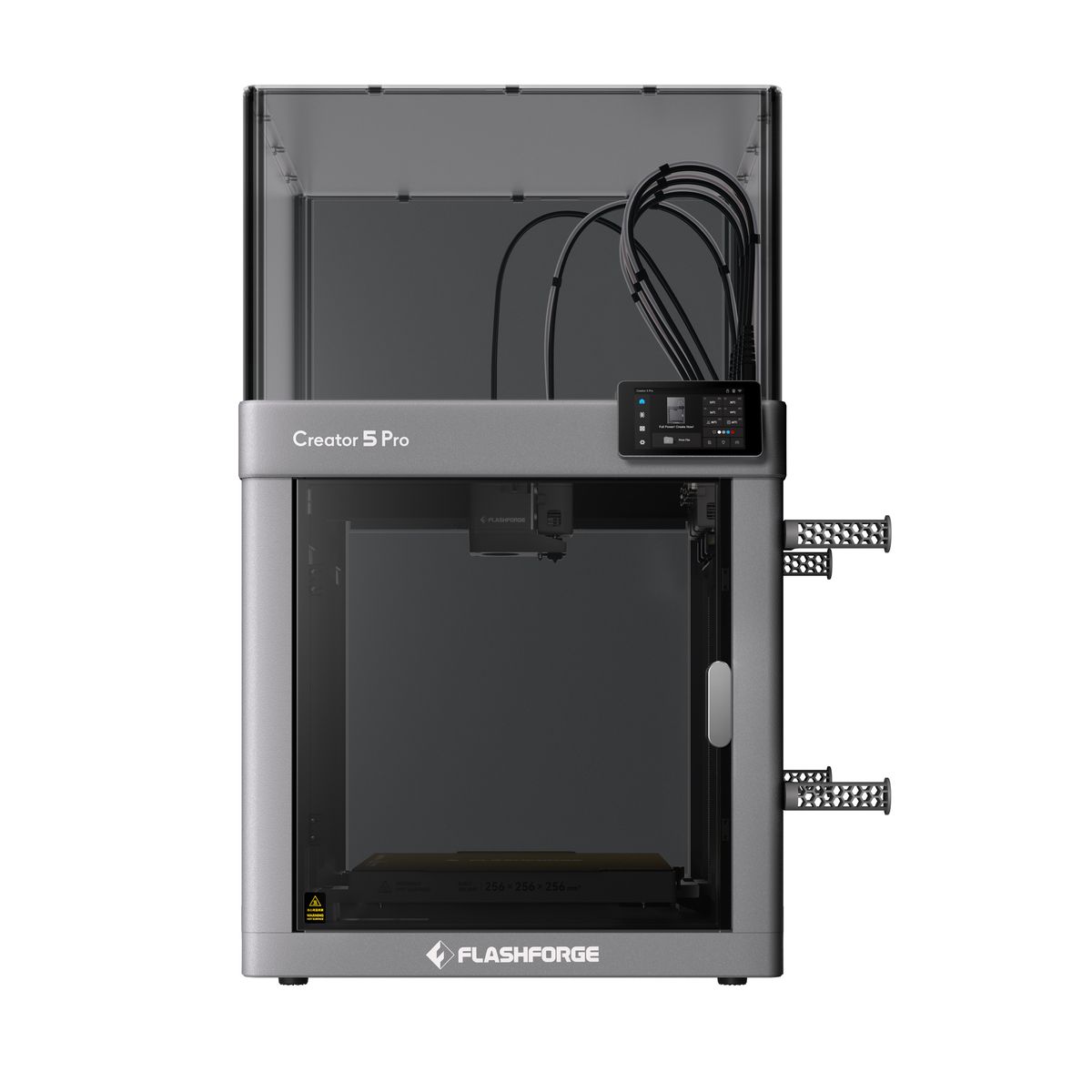

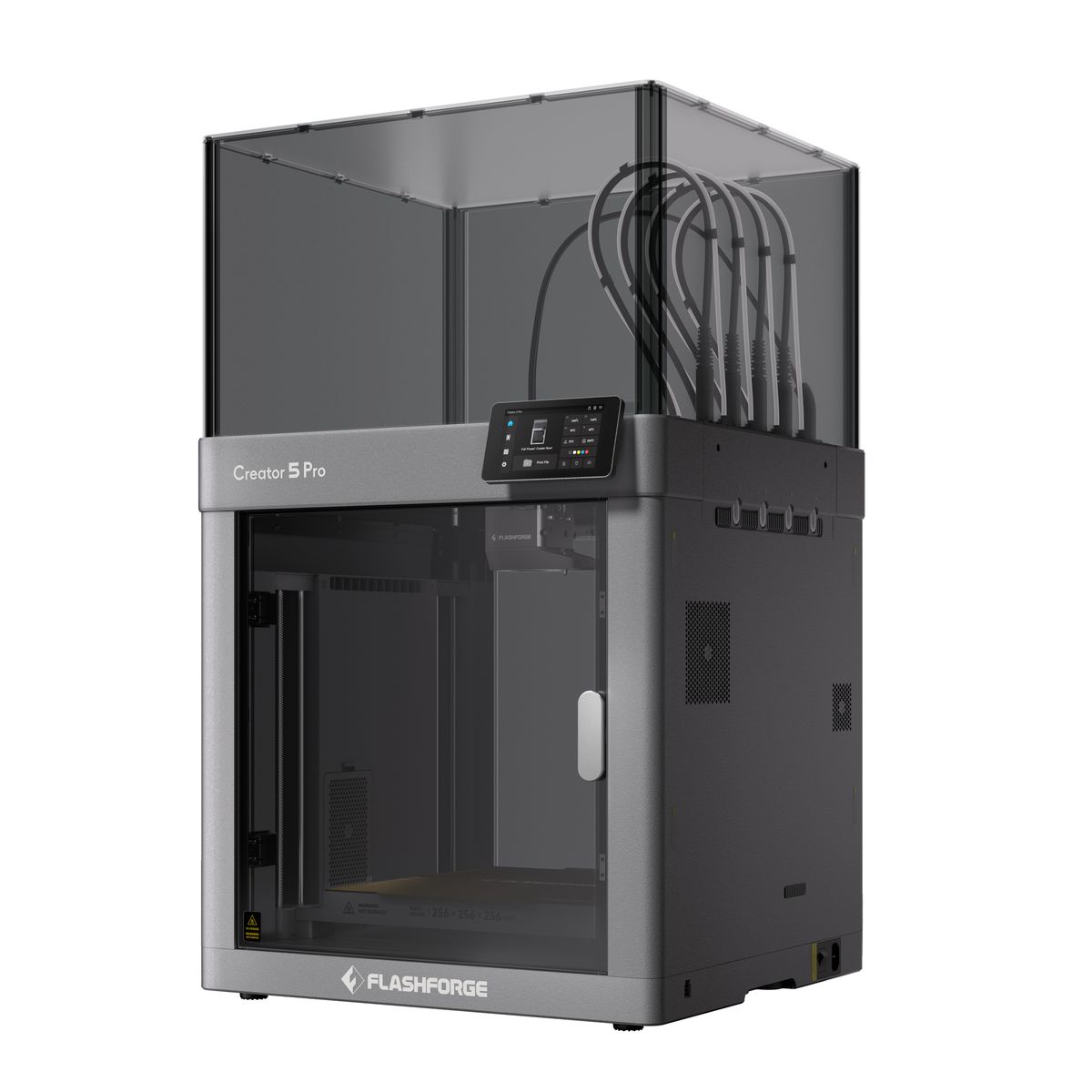

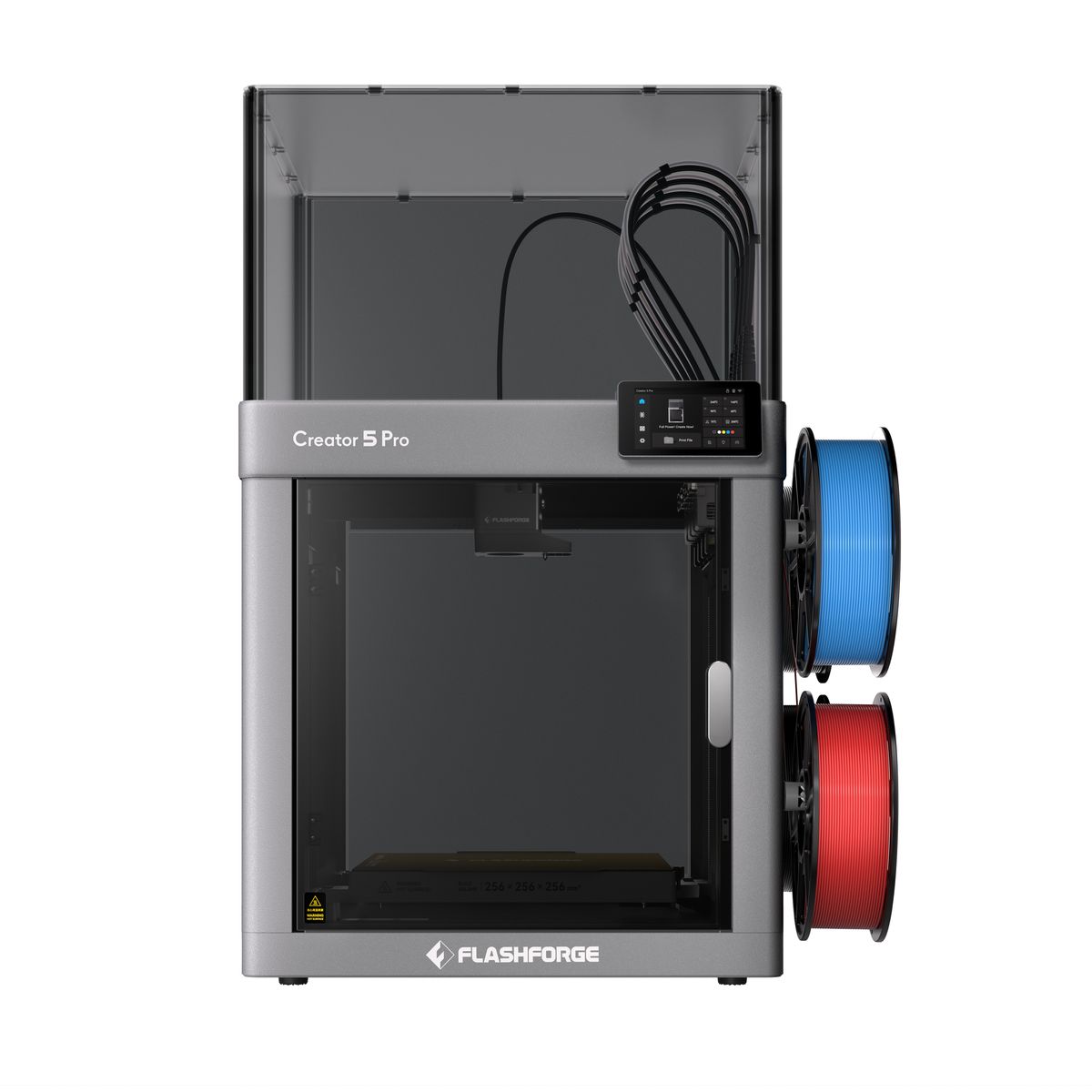

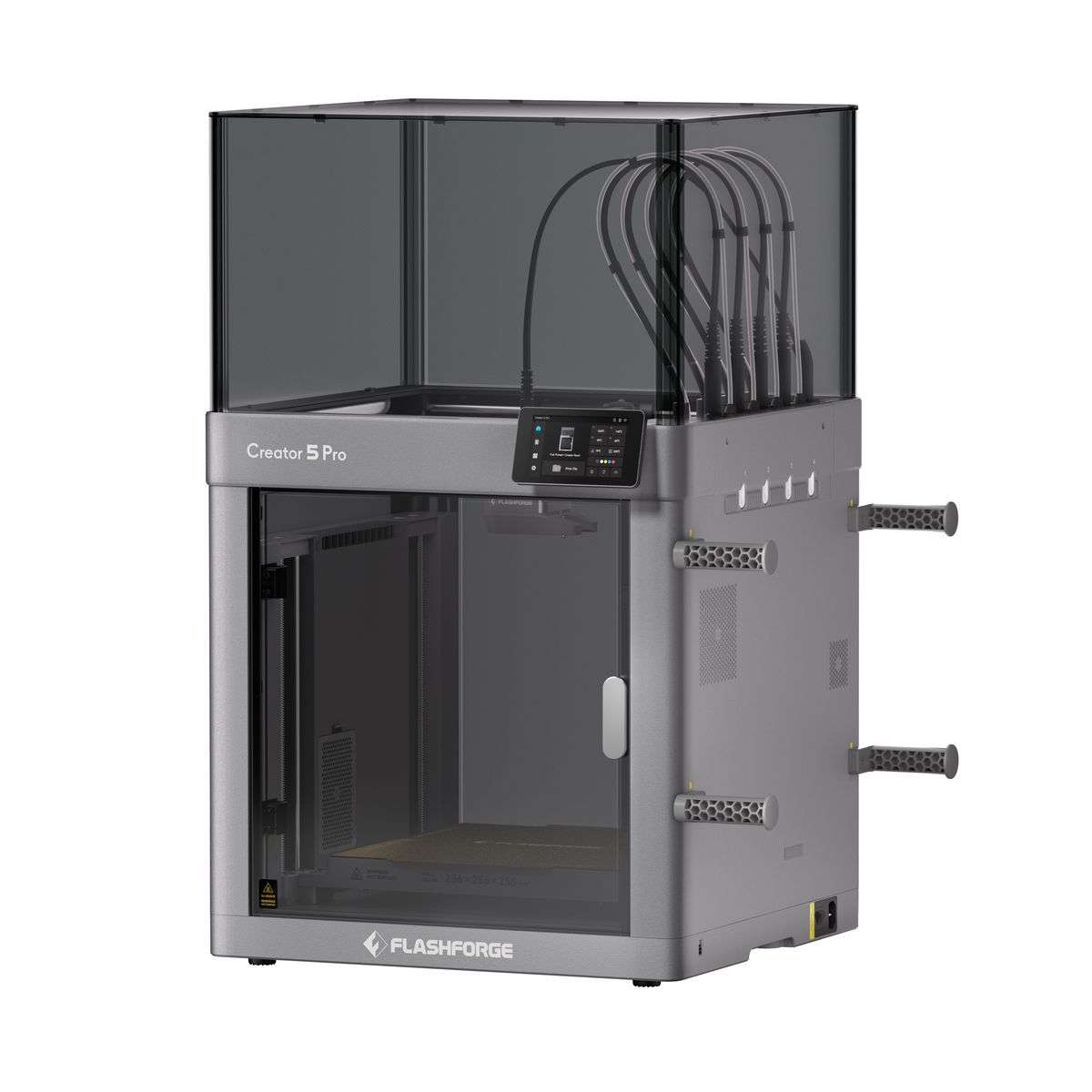

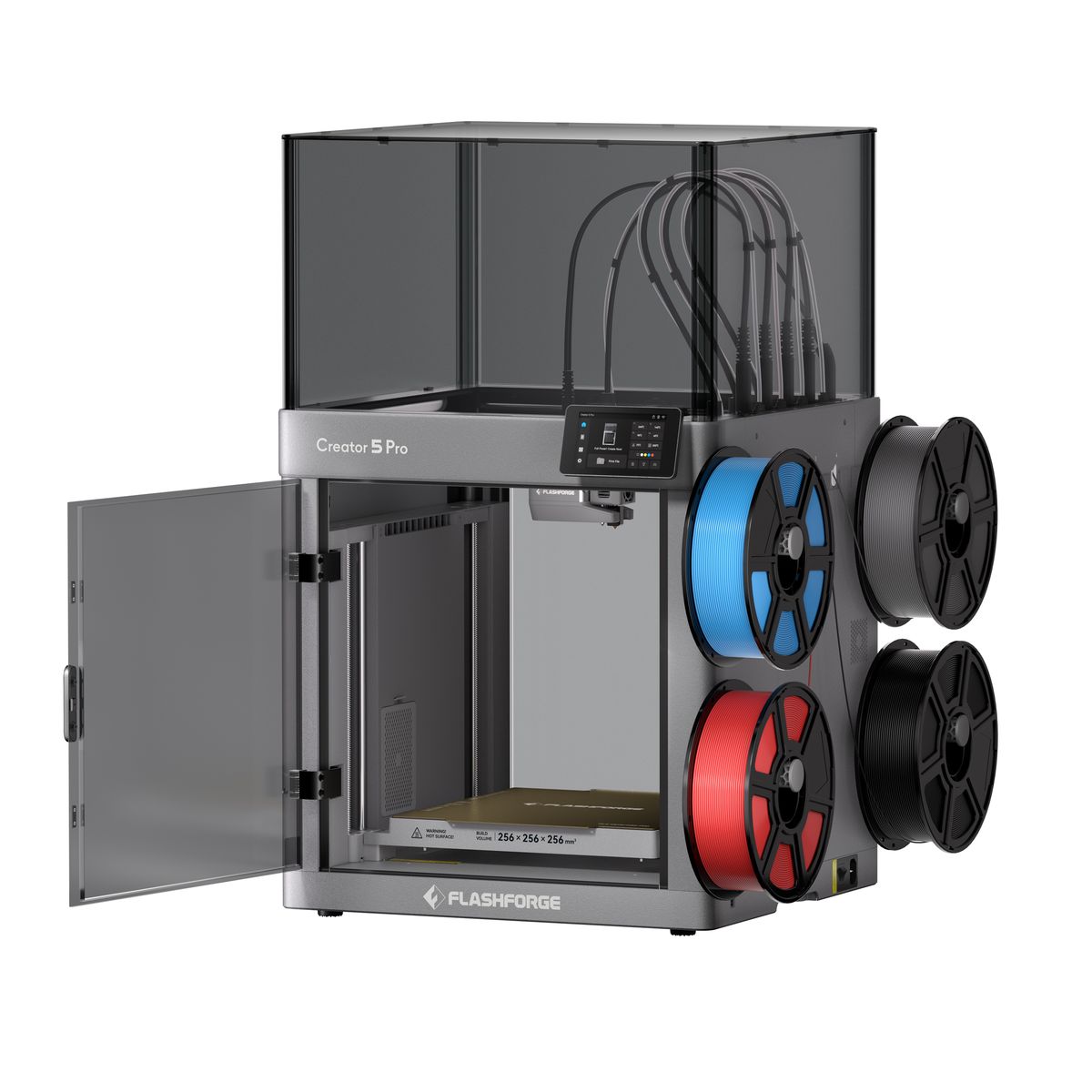

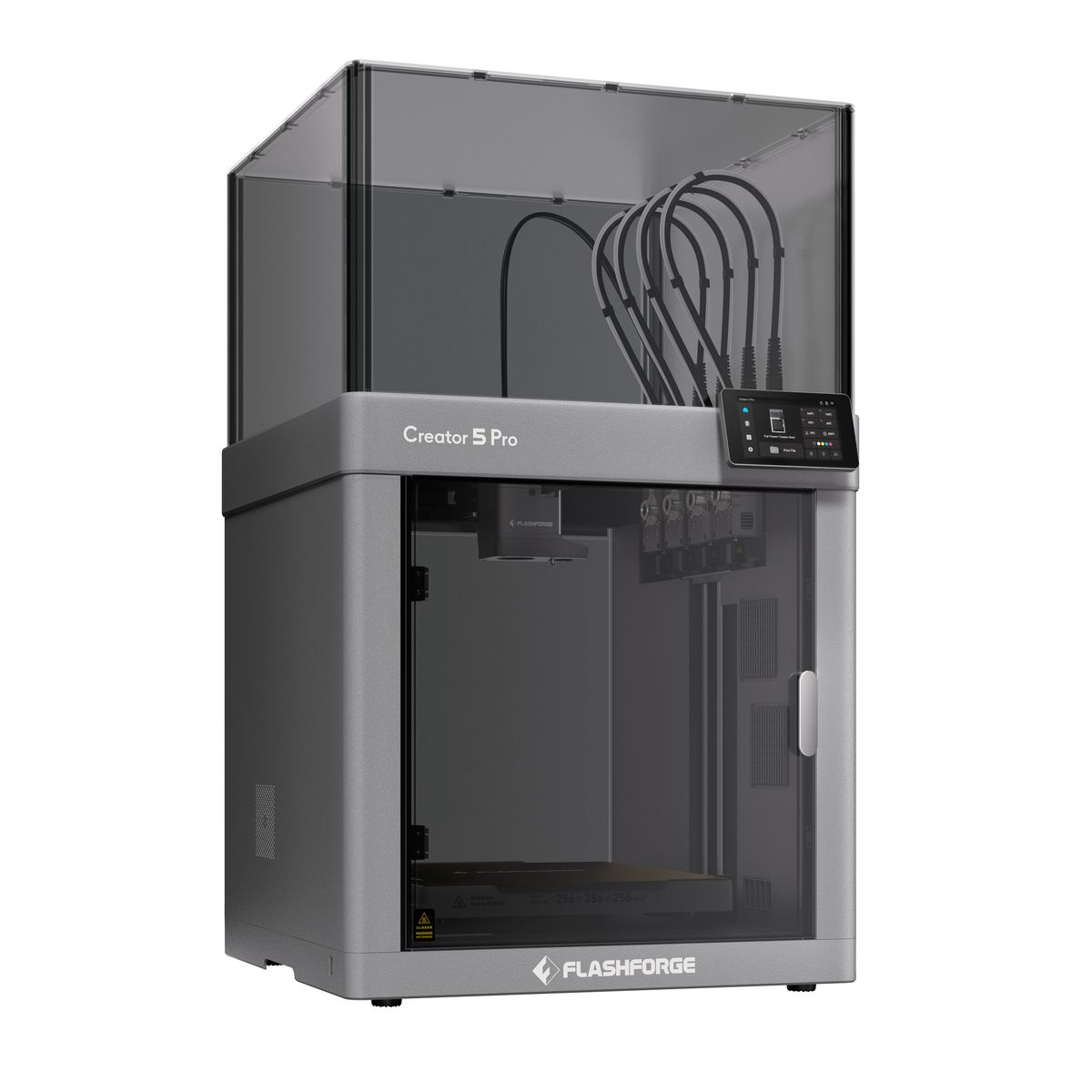

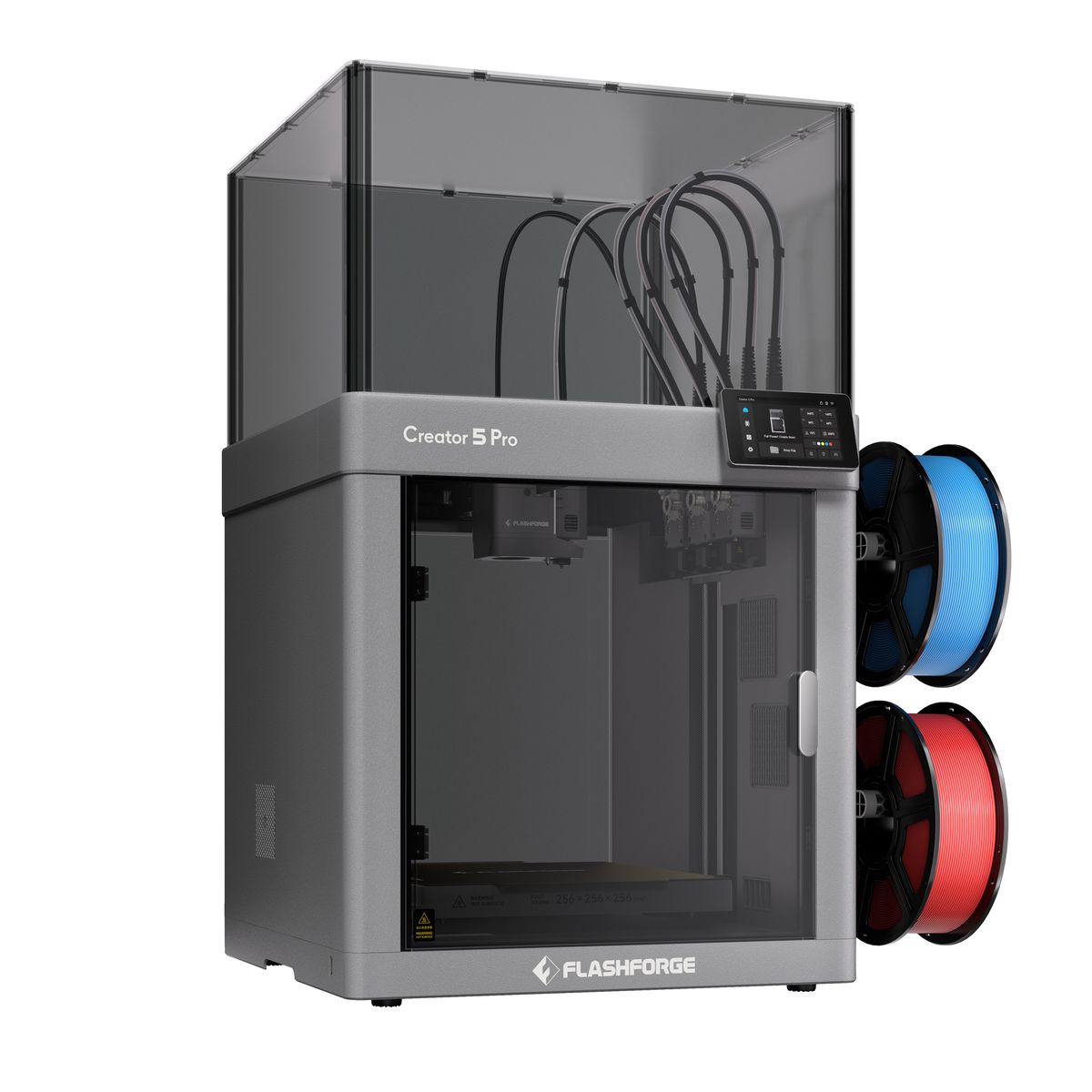

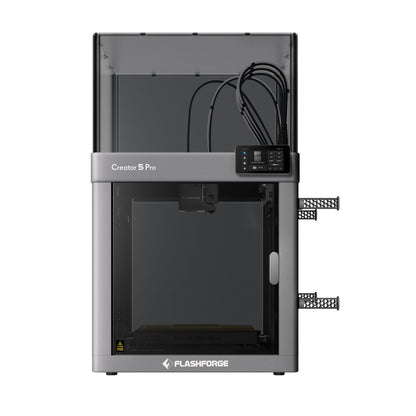

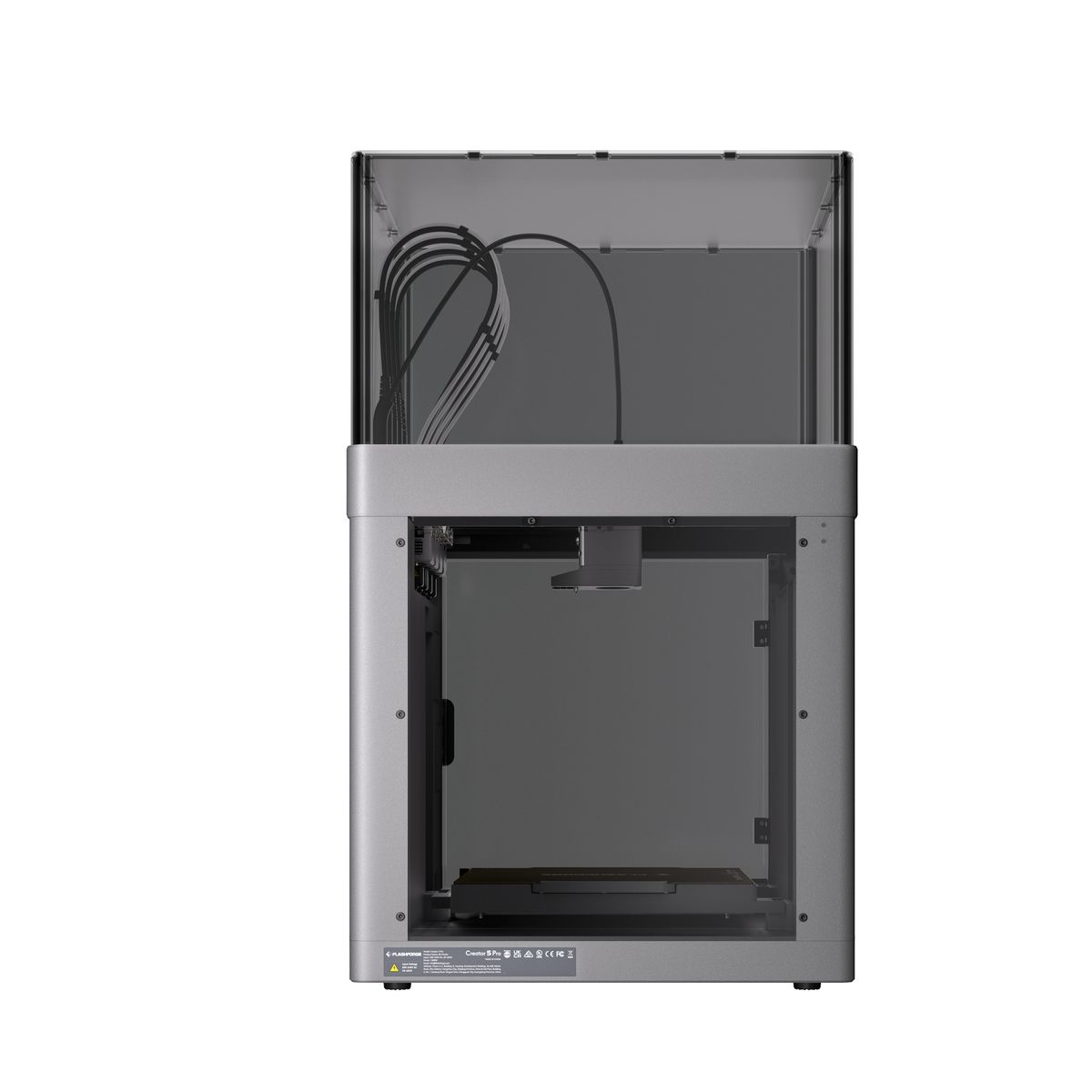

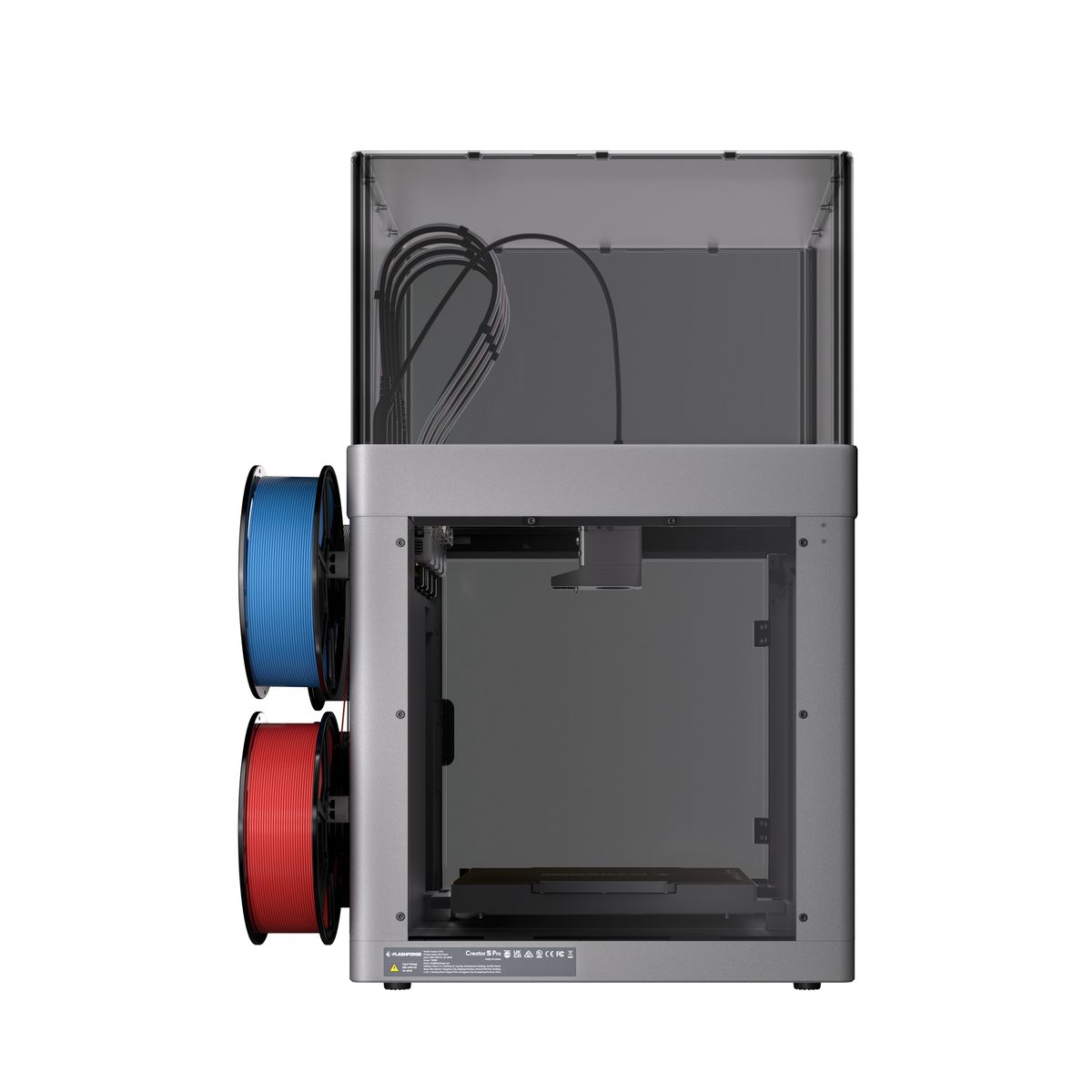

Flashforge Creator 5 Pro 4-Toolhead Multi-Colour 3D Printer

Take multi-colour and multi-material 3D printing to the next level with the Flashforge Creator 5 Pro. Featuring four independent toolheads, a fully enclosed build chamber, active chamber heating, and high-speed printing up to 300 mm/s, the Creator 5 Pro is engineered for professional users who demand versatility, reliability, and exceptional print quality.

Unlike conventional filament-switching systems, the Creator 5 Pro uses four independent toolheads, allowing different materials or colours to remain loaded and ready to print. This enables true multi-material printing while dramatically reducing the waste normally associated with filament purging and colour changes. Flashforge's FlashSwap technology is designed to deliver fast tool changes with minimal material waste.

With a 256 × 256 × 256 mm build volume, a 320°C maximum nozzle temperature, and a heated chamber capable of reaching 65°C, the Creator 5 Pro can handle everything from everyday PLA and PETG to demanding engineering materials such as PA-CF, PPA-CF and PPS-CF.

Key Features

• 4 independent toolheads for true multi-colour and multi-material printing
• Flashforge FlashSwap rapid tool-changing system
• Build volume: 256 × 256 × 256 mm
• Maximum print speed: 300 mm/s
• Maximum travel speed: 600 mm/s
• Maximum acceleration: 30,000 mm/s²
• 320°C maximum extruder temperature
• 120°C maximum heated bed temperature
• Active heated chamber up to 65°C
• Fully enclosed rigid frame
• Automatic bed levelling
• Automatic multi-toolhead offset calibration
• Automatic flow and pressure advance calibration
• Flexible textured PEI steel build plate

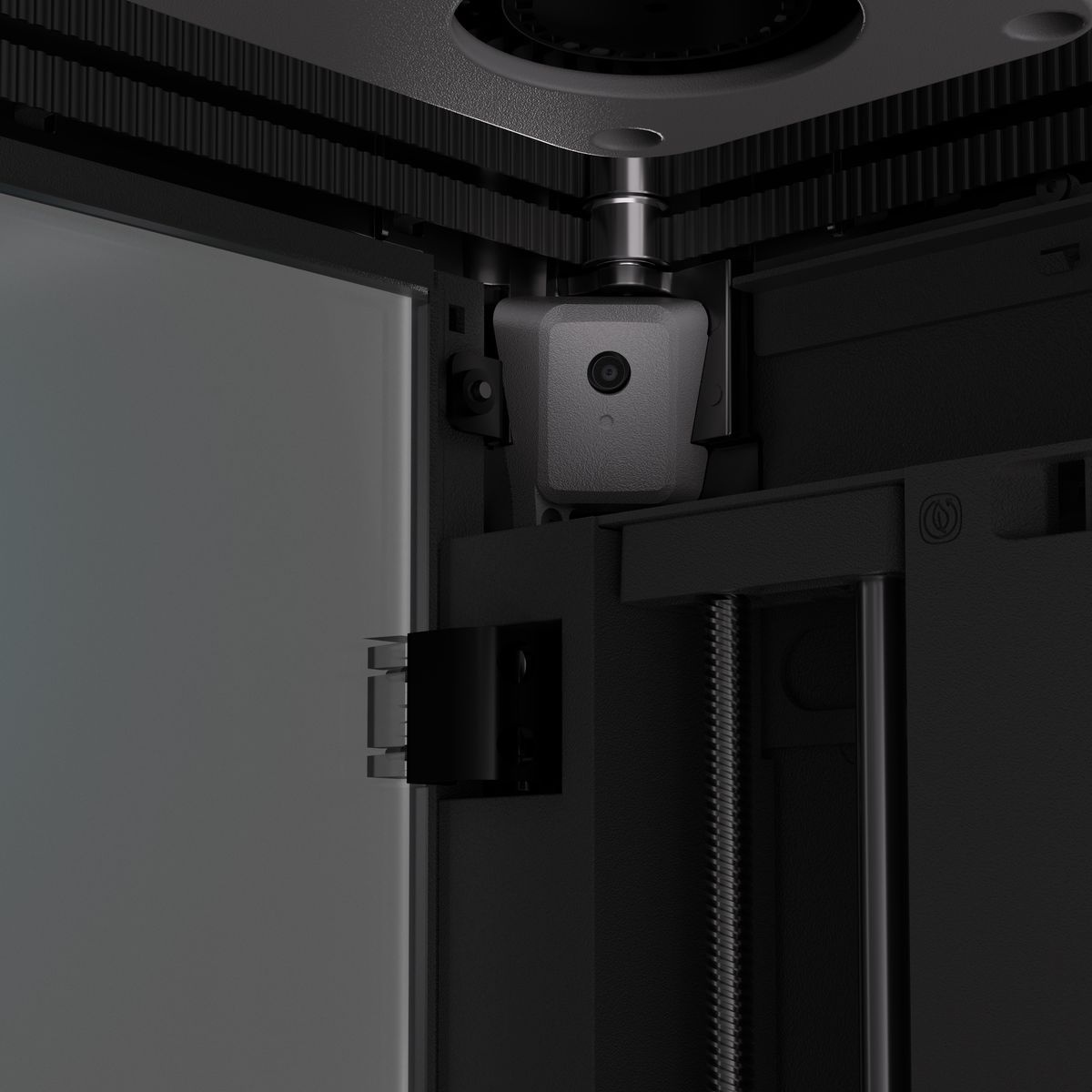

• Built-in Full HD monitoring camera
• H13 HEPA + activated carbon air filtration
• Filament run-out detection
• Power-loss recovery
• 2.4GHz and 5GHz Wi-Fi
• USB connectivity
• Multi-printer management
• Orca-Flashforge and OrcaSlicer compatible

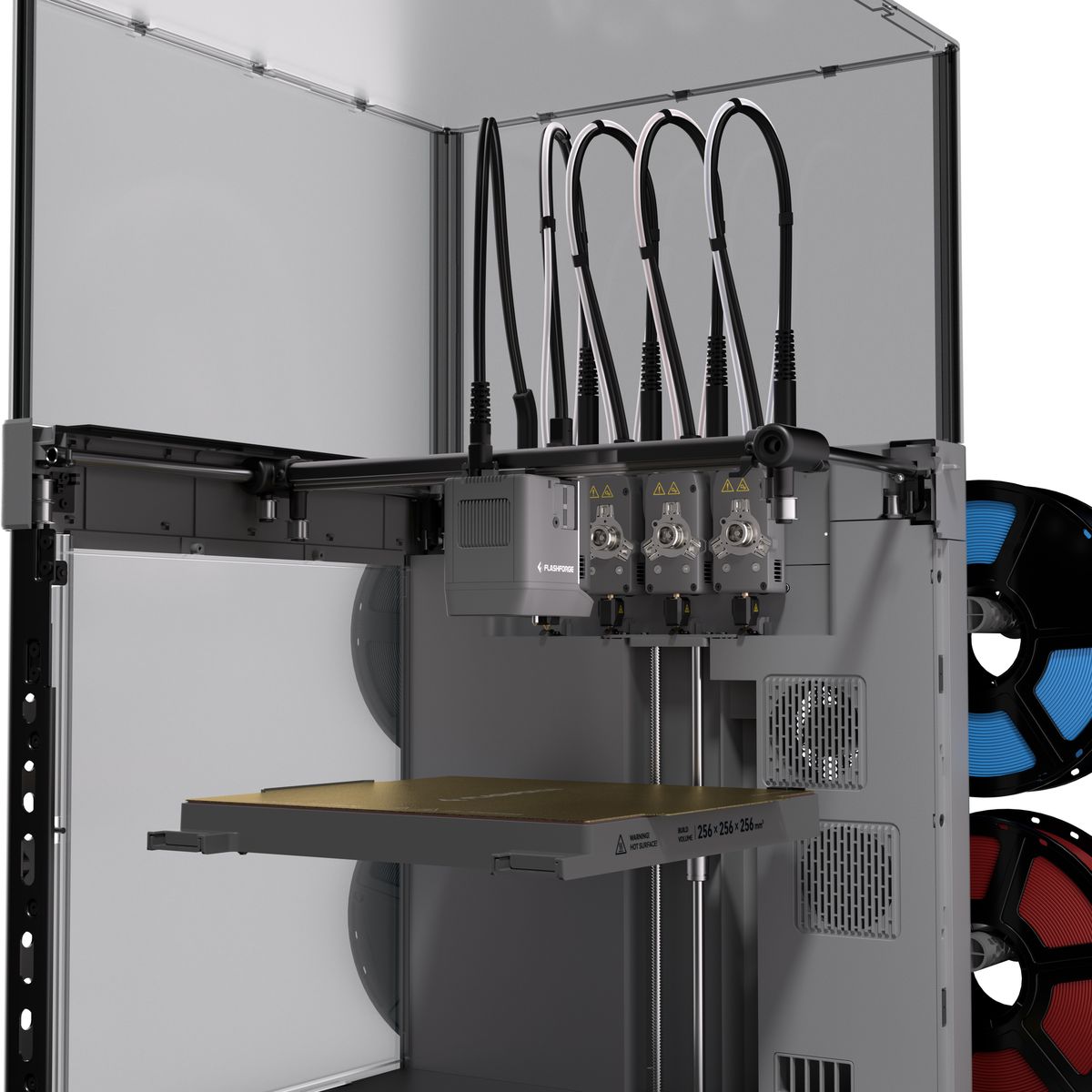

True Multi-Material Printing

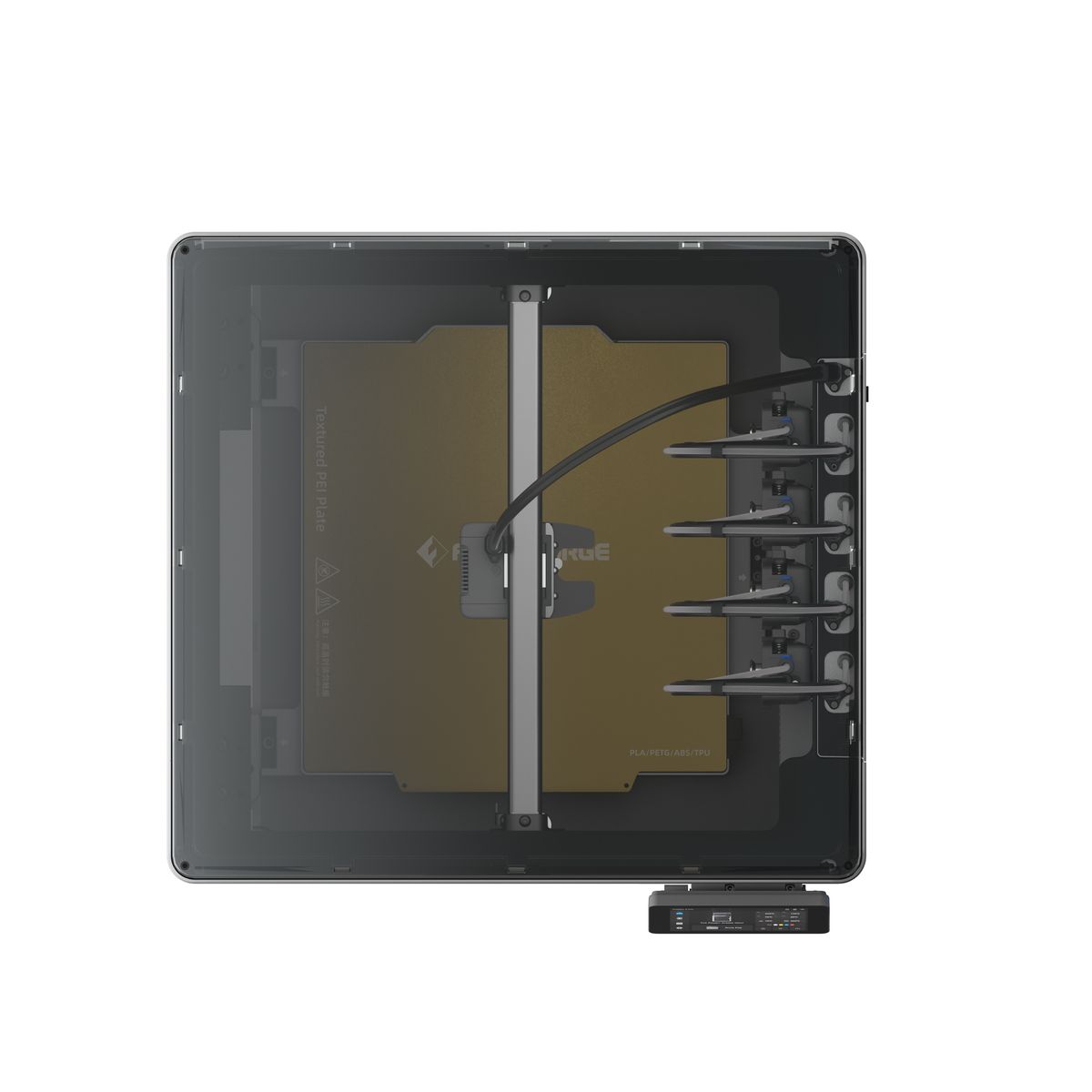

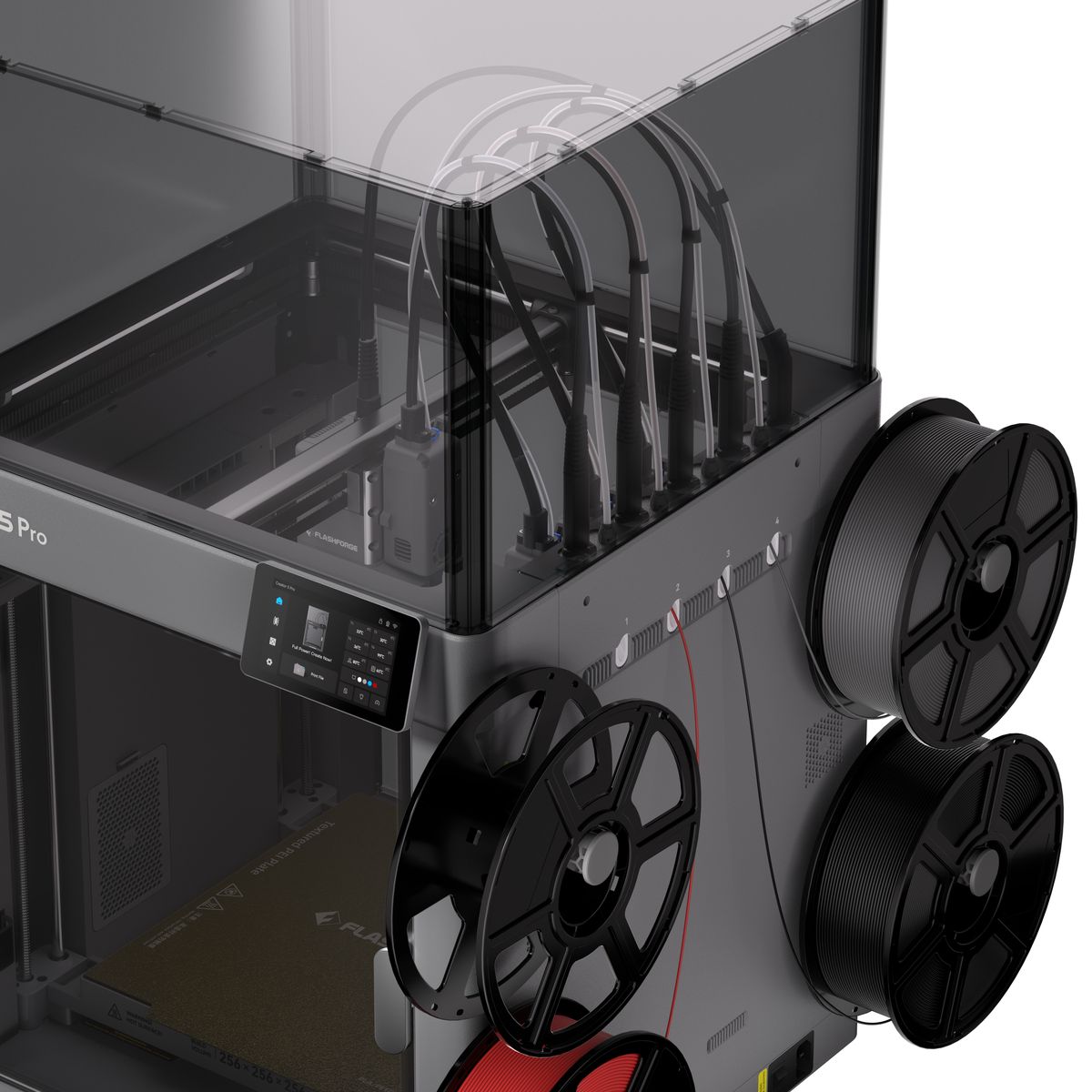

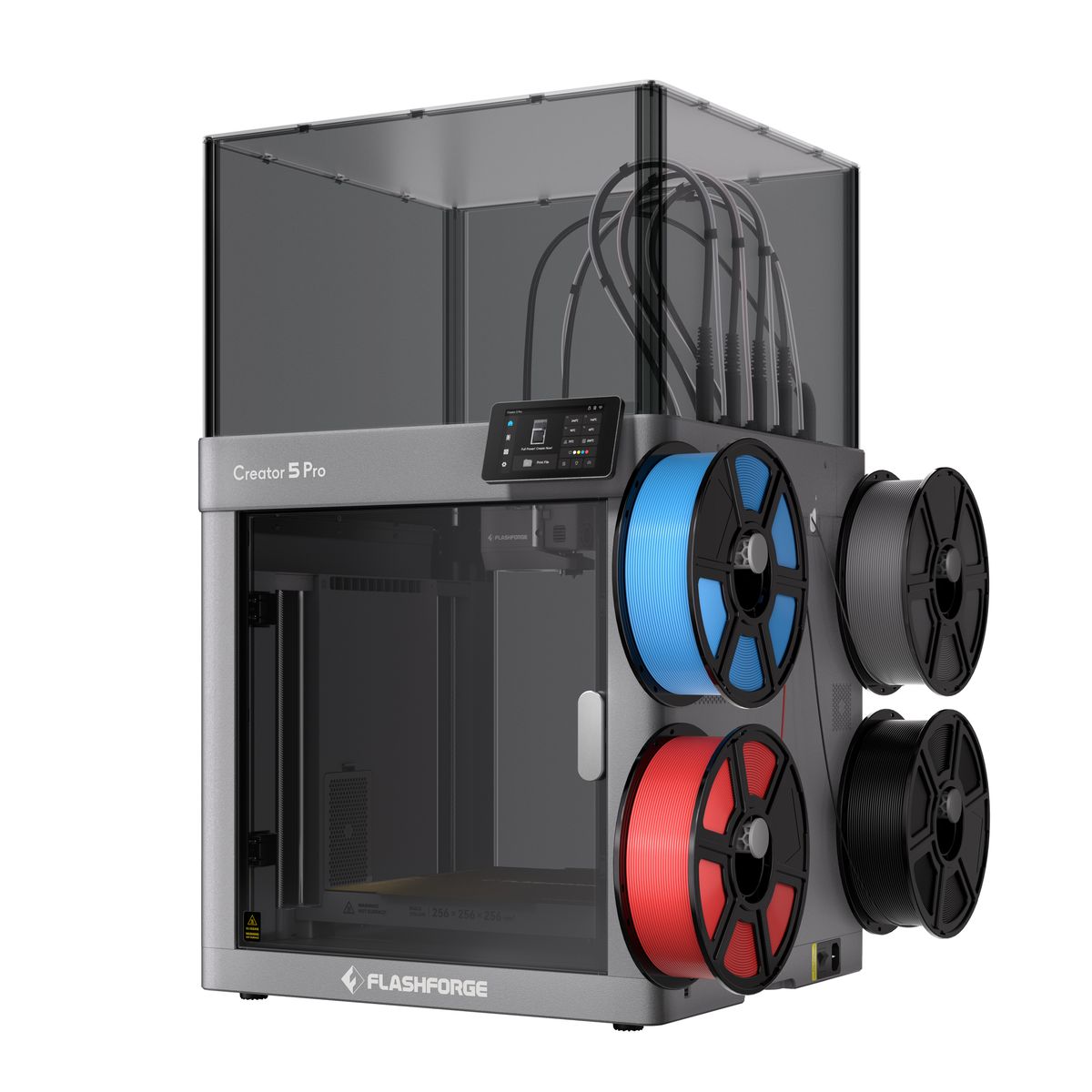

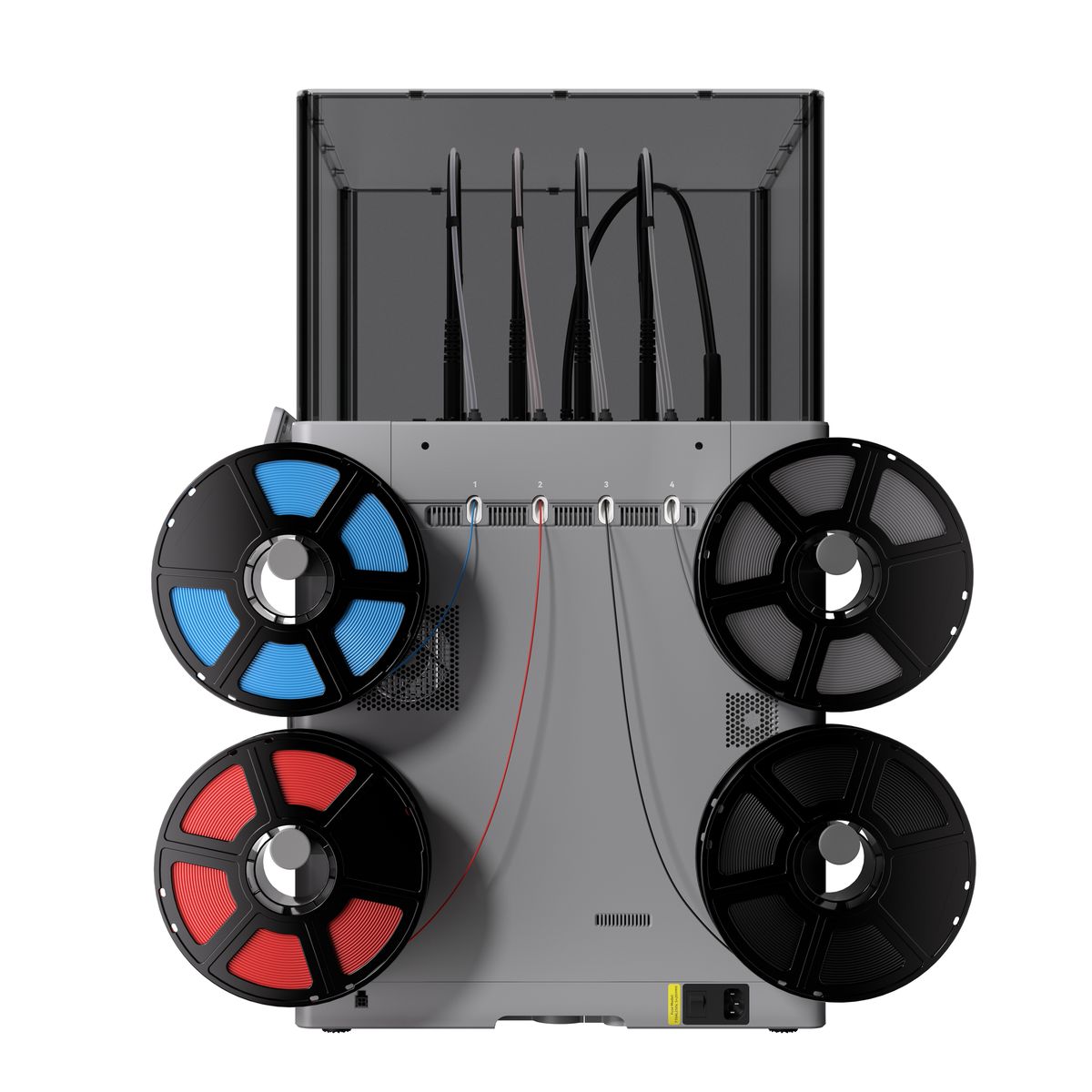

The four independent toolheads allow the Creator 5 Pro to keep multiple materials installed simultaneously. This makes it possible to combine different materials within a single print—for example, using a rigid engineering material for the main structure and a different material for support or functional sections.

Because each toolhead is independent, the printer can switch between materials without continuously feeding and purging filament through a single nozzle, helping to significantly reduce material waste.

Technical Specifications

• Printing Technology: FDM
• Toolheads: 4 Independent Toolheads
• Build Volume: 256 × 256 × 256 mm
• Maximum Print Speed: 300 mm/s
• Maximum Travel Speed: 600 mm/s
• Maximum Acceleration: 30,000 mm/s²
• Maximum Flow Rate: 32 mm³/s
• Layer Height: 0.1–0.4 mm
• Maximum Nozzle Temperature: 320°C
• Maximum Bed Temperature: 120°C
• Chamber Temperature: Up to 65°C
• Standard Nozzle: 0.4 mm
• Optional Nozzles: 0.25 / 0.6 / 0.8 mm
• Build Plate: Textured Flexible PEI Steel
• Levelling: Automatic
• Display: 4-inch Full-Colour Touchscreen, 800 × 480
• Camera: Full HD, 1280 × 720 @ 30 fps
• Connectivity: USB / Wi-Fi
• Wi-Fi: 2.4GHz / 5GHz
• Air Filtration: H13 HEPA + Activated Carbon
• Compatible Software: Orca-Flashforge, OrcaSlicer

Compatible Materials

The Creator 5 Pro supports an exceptionally broad range of materials, including:

PLA • PETG • TPU • PLA-CF • PETG-CF • SILK • PVA • BVOH • ABS • ASA • HIPS • PA-CF • PET-CF • PAHT-CF • ASA-CF • PPA-CF • PPS-CF • PC • PA • PC-ABS

Its actively heated chamber makes it particularly well suited to demanding engineering materials that benefit from controlled chamber temperatures.

Ideal Applications

• Professional prototyping
• Engineering components
• Functional production parts
• Automotive applications
• Multi-material prototypes
• Multi-colour models
• Manufacturing fixtures and tooling
• Carbon-fibre reinforced components
• Small-batch production
• Product development
• Educational and professional workshop

Smart Professional Features

The Creator 5 Pro is designed to minimise manual calibration and maximise reliability. Automatic toolhead offset calibration, automatic bed levelling, dynamic flow calibration, vibration compensation, filament detection and power-loss recovery all contribute to a more streamlined professional workflow.

What's in the Box

• 1 × Flashforge Creator 5 Pro 3D Printer
• 4 × Independent Toolheads
• Textured Flexible PEI Build Plate
• Accessories and Tool Kit
• Power Cable
• Filament Accessories
• User Documentation

Professional Multi-Material Printing Without the Waste

The Flashforge Creator 5 Pro combines four independent toolheads, high-speed CoreXY-style motion, an actively heated chamber, advanced automation, and professional material compatibility into one powerful platform.

For businesses looking to move beyond basic single-material printing, the Creator 5 Pro offers a highly capable solution for producing complex, multi-colour and multi-material components with less waste and greater production efficiency.
